This article applies to on-premises deployments only. Remote database configuration is not available in SaaS.
By default, Syteca Application Server and its PostgreSQL database can run on the same machine. If you want to host the database on a separate server, you need to configure PostgreSQL to accept remote connections and open port 5432 on both machines. This article walks through every step.

​
Before you begin

  • Identify the IP address of the Syteca Application Server. If your network uses NAT, you need the external IP address.
  • Decide whether to allow connections from a single IP or from an entire subnet — you will enter this in pg_hba.conf.
  • Confirm that you have administrator access to both the PostgreSQL server and the Application Server.

​
Install and configure remote access

​
1. Install PostgreSQL

Download PostgreSQL 10 or later from the official PostgreSQL website and run the installer on the remote database server.

​
2. Configure listen addresses

On the PostgreSQL server, navigate to the data folder and open postgresql.conf:
Find the listen_addresses parameter. Set it to * to accept connections from any IP address, or replace * with the specific IP address of the Application Server:
Save the file.

​
3. Allow the Application Server in pg_hba.conf

In the same folder, open pg_hba.conf. Under the IPv4 local connections section, add a new row with the following values:
If your network uses NAT, enter the external IP address of the Application Server in the Address field — not the internal one.
Save pg_hba.conf.

​
4. Restart PostgreSQL

Restart the PostgreSQL service to apply both configuration changes. Changes to postgresql.conf and pg_hba.conf do not take effect until the service restarts.

​
5. Open port 5432 on both machines

On both the PostgreSQL server and the Syteca Application Server, open Windows Firewall and add an inbound rule that allows TCP traffic on port 5432.

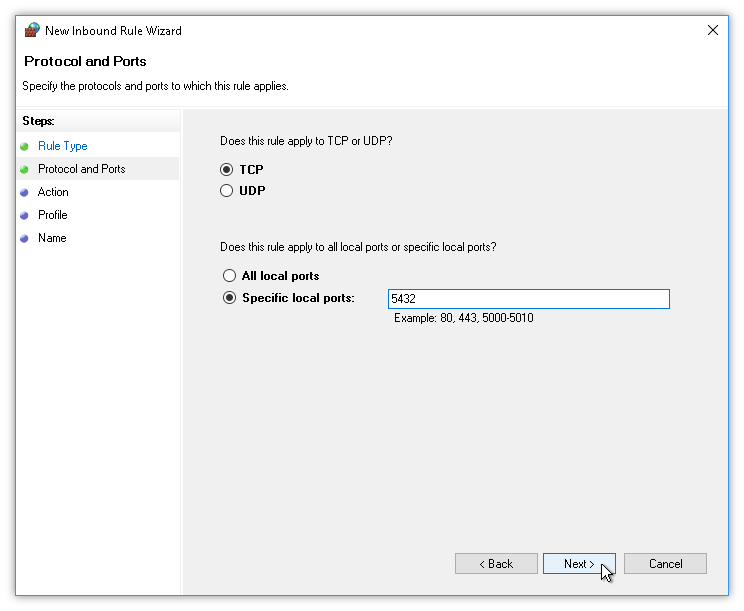

Windows Firewall new inbound rule dialog with TCP port 5432 entered for PostgreSQL remote access

Windows Firewall inbound rule allowing TCP port 5432 for PostgreSQL remote access.

​
Verify the connection

After completing all steps, the Syteca Application Server should be able to reach the remote PostgreSQL instance. If the connection fails, check the following:
  • Port 5432 is open on both machines, not just one.
  • The IP address in pg_hba.conf exactly matches the address the Application Server connects from.
  • The PostgreSQL service was restarted after the configuration changes.
  • If NAT is in use, the external IP address — not the internal one — is entered in pg_hba.conf.

​
