Reports

Turn months of activity data into one email-ready PDF

Recording everything is useful. Proving what happened is what auditors, executives, HR, and incident responders actually ask for — and they ask in PDF or Excel form, on a schedule, broken down by user, application, or time window. A monitoring platform that captures every keystroke but makes you SQL the database to answer “what did Sarah do last Tuesday between 2 and 4 PM” is a platform that fails the moment the compliance team shows up. Tools at one end of the market (free auditd, raw syslog) leave you to write your own reporting layer.Other tools at the other end ship rich reports but pin you to their canned categories and SaaS branding. Syteca reports sit in between — 28+ report types ready out of the box, scheduled delivery to any email address, custom header / footer / logo to match your organization, export to PDF, Excel, CSV, HTML, RTF, plain text, or XML, and role-based download permissions so the right people see the right reports.

Use Syteca reports when you need to:

Produce compliance evidence for SOC 2, ISO 27001, PCI DSS, HIPAA, or NIST 800-53 audits — session viewing logs, access requests, USB events, secondary authentication.
Send weekly or monthly user productivity summaries to managers without manual extraction work.
Surface alerts and outside-of-work-hours activity to security teams as a recurring email digest.
Build monthly executive dashboards of clipboard, file upload, URL, and application usage across the organization.
Track who has viewed which recorded sessions (auditing the auditors).
Investigate specific incidents by generating ad-hoc reports filtered to one user and time window.

Pair it with User Activity Dashboards — dashboards are for live exploration in the Management Tool, reports are for evidence you save, send, or print.

This page is the conceptual overview, the full report-type reference, and the customization and report-management settings that apply across all reports. To actually generate reports, see Ad-hoc reports (one-time) and Scheduled reports (recurring).

Export formats

Every report type can be generated in any of the following formats:

Format	Best for
PDF (`.pdf`)	Auditor packages, executive sharing, archival evidence
Excel Workbook (`.xlsx`) / Excel 97-2003 (`.xls`)	Spreadsheet analysis, pivot tables, further filtering
CSV (`.csv`)	Importing into BI tools, data warehouses, custom pipelines
HTML (`.html`) / Single File Web Page (`.mht`)	Sharing via browser, embedding in dashboards
Rich Text Format (`.rtf`) / Plain Text (`.txt`)	Email body, lightweight sharing
XPS Document (`.xps`)	Microsoft-native fixed-layout archival
XML (`.xml`)	Machine processing, ETL pipelines

To view Japanese characters in exported PDF reports, the Arial Unicode MS font must be installed on both the Application Server and the Management Tool computers — and both must be rebooted afterward. After that, new reports will render Japanese correctly.

Report types

The Management Tool offers 28+ report types organized into three categories: Grid Reports (tabular data), Summary Grid Reports (aggregations), and Chart Reports (visualizations). Where a report only works on certain Client OSs, that’s noted next to its name.

“(Grouped)” report types contain the same data as their non-grouped counterparts, but combine all per-user / per-Client groups into a single grid — useful when exporting to Excel for pivot tables and cross-Client analysis.

Grid Reports

Report type	Contains	Key columns
Access Request Grid	All access requests with status, when processed, who processed them	Client Name, User Name, Request Type, Requested At, Status, Processed At, Processed By, Expired At
Alert Grid	All alert events detected	Activity Time, Alert Name, Alert Risk, Details
Audit Session Grid (User Management permission required)	Which Management Tool users viewed which sessions, based on the same records that appear in the Audit Log	Date & Time, Viewer User Name/Group, Action, Who, Where, Session Time
Clipboard Grid (Windows / macOS)	All clipboard text operations performed by users	Activity Time, Activity Title, Application, Clipboard Operation, Clipboard Text
Clipboard Grid (Grouped) (Windows / macOS)	Same as Clipboard Grid, single grid by Client / User	Client Name, User Name, then Clipboard Grid columns
Detailed Activity Grid	All user activities	Activity Time, Activity Title, Application, URL, Text Data
Detailed Activity Grid (Grouped)	Same as Detailed Activity Grid, single grid	Client Name, User Name, then Detailed Activity Grid columns
File Monitoring Grid (Windows / macOS)	All file upload operations detected	Risk Level, Time, Process Name, Path, File Name, Operation, Details
Keystroke Grid (Windows / macOS)	All keystrokes entered by users	Activity Time, Activity Title, Application, Keystrokes (Smart), Keystrokes (Raw)
Linux/XWindow Grid (Linux only)	All `exec*` and `sudo` commands executed	Activity Time, Command, Function, Parameters
Overtime Work Grid	Time spent outside specified standard work hours, idle excluded (time after login until first activity excluded — see note below)	User Name, Total Time Spent, Active Out Of Work Hours, Session Start, Last Activity, Remote IP, Remote Public IP, Session URL
Secondary User Authentication Grid	All logins to Clients using secondary authentication	Client Name, IP Address, User Name, Secondary Auth Login, Login Time, Remote IPv4, Remote Host Name
Session Grid	All sessions	User Name, Total Time, Active Time, Session Start, Last Activity, Remote IP, Remote Public IP, Session URL, Comment
Session Grid (Grouped)	Same as Session Grid, single grid by Client	Client Name + Session Grid columns
Session Viewing Status Grid	Which users have viewed which Client sessions, and which sessions have not been viewed	Session ID, User Name, Client Name, Session Start, Last Activity, Remote IP, Remote Public IP, Session URL, Is Viewed, Viewer User Name, Date & Time
Sessions Outside of Work Hours Grid	Like Overtime Work Grid, but includes time after login until first activity recorded	User Name, Total Time Spent, Active Out Of Work Hours, Session Start, Last Activity, Remote IP, Remote Public IP, Session URL
Terminal Server Grid (Windows only)	All users who connected to Terminal Server Clients	Client Name, Number Of Users, User Name, Number Of Connections, Total Time
USB Alert Grid (Windows / macOS)	All USB events detected by USB monitoring rules	Time, Rule Name, Action (Blocked/Allowed), Risk Level, Device Class, Device Details
USB Storage Grid (Windows only)	All USB devices plugged in and automatically detected (no rule required)	Time, Details
User Behavior Analytics Grid (not in SaaS)	All sessions with user behavior anomalies detected	Who, Where, When, Details, Session Score, Session URL
User Daily Activity Grid	Activity of users by day, idle excluded	User Name, Active Time, First Activity Time, Last Activity Time, Remote IP, Remote Public IP, Session URL
User Statistics Grid	Total activity of users	User Name, Total Time Spent, Session Count, Computers, Remote IPs, Remote Public IPs

Summary Grid Reports

Report type	Contains	Key columns
Activity Summary Grid	Total time using each application, idle included	Application Name, % Of Time, Time Spent
Activity Summary Grid (Grouped)	Same as Activity Summary Grid, single grid by Client / User	Client Name, User Name, Activity Date, Application Name, Minutes Spent
URL Summary Grid (Windows / macOS)	Total time on each website	URL, % Of Time, Time Spent
URL Summary Grid (Grouped) (Windows / macOS)	Same as URL Summary Grid, single grid by Client / User	Client Name, User Name, Activity Date, URL, Minutes Spent
User Productivity Summary Grid	Total time spent by user + top 10 applications + top 10 websites	User Name, Date, Total Time, Active Time, First/Last Activity, Idle Time, Top 10 Applications, Top 10 URLs

Chart Reports

Report type	Visualization
Activity Chart	Bar chart of Activity Summary Grid data
Activity Pie Chart	Pie chart of Activity Summary Grid data
URL Chart (Windows / macOS)	Bar chart of URL Summary Grid data (URL host only, e.g. `example.com`)
URL Pie Chart (Windows / macOS)	Pie chart of URL Summary Grid data
User Active Time and Idle Time Chart	Bar chart of active vs idle time per user
User Productivity Chart	Bar chart of active time per hour per day per user, idle excluded
User Productivity Heatmap	Heatmap of active time per hour per day per user, idle excluded

The Generated Reports tab

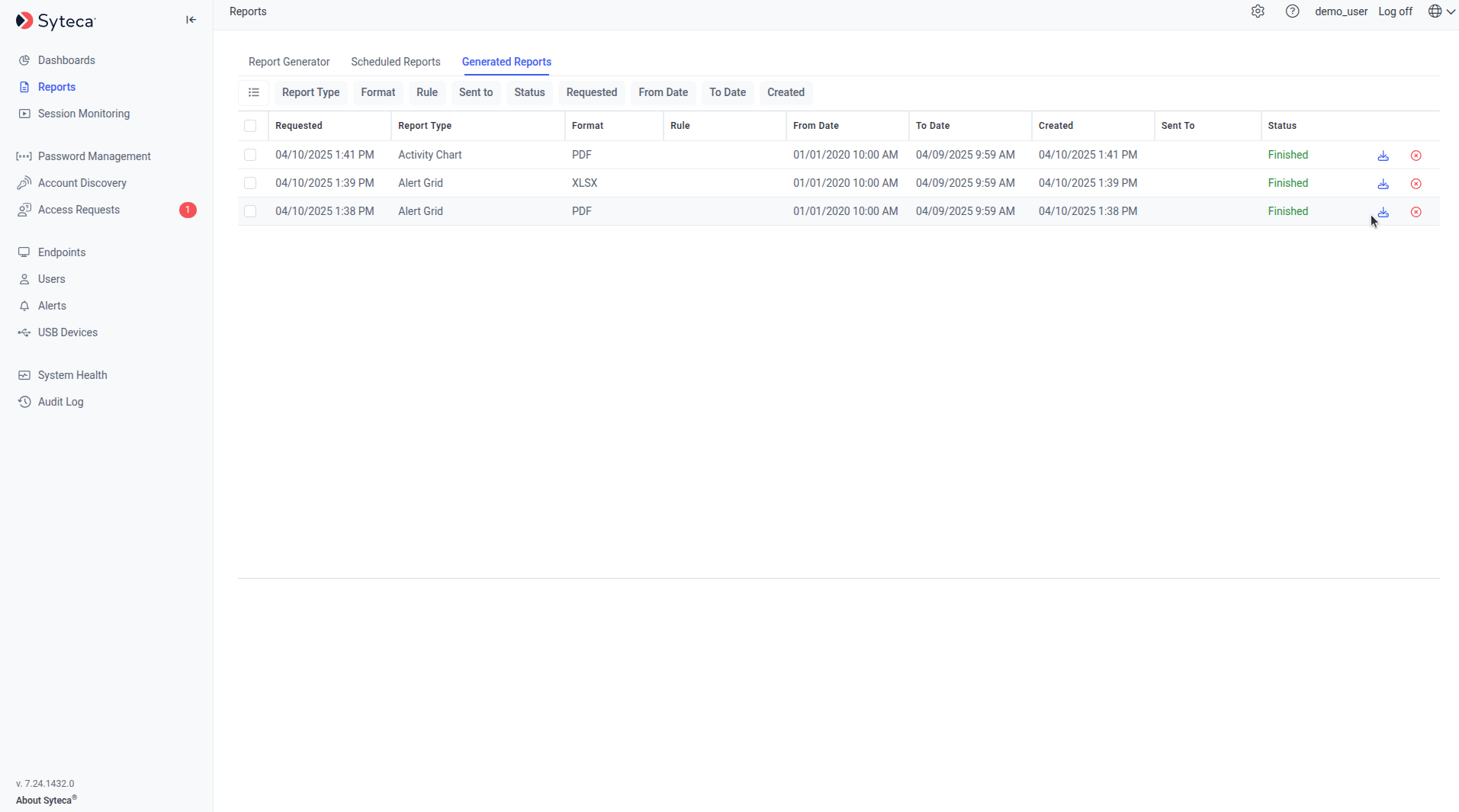

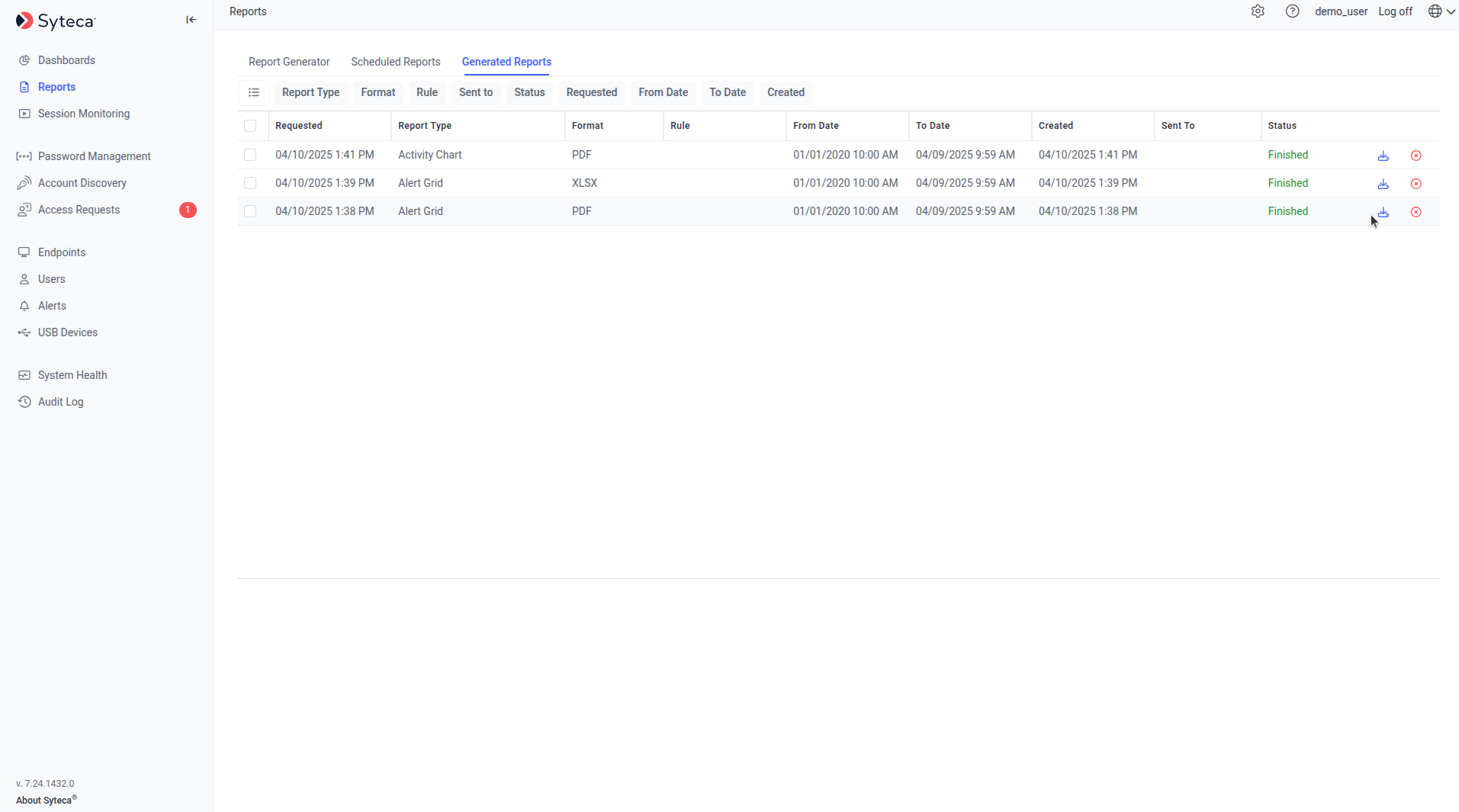

Generated Reports tab grid showing multiple reports at various statuses with Report Type, Format, Rule, From/To Date, Status, Sent To, and Download icon columns — The Generated Reports tab — every report ever requested across both ad-hoc and scheduled workflows, with status, format, and download surfaces in one grid.

Both ad-hoc reports and scheduled reports send their output to the Generated Reports tab on the Reports page. The grid shows every report that’s been requested, including the in-progress ones, with these columns:

Column	Shows
Select (checkbox)	Select one row, or click the column-header checkbox to select all.
Requested	When the report was requested.
Report Type	The type of report (Alert Grid, Activity Chart, etc.).
Format	PDF, CSV, XLSX, etc.
Rule	Name of the Scheduled Report rule used. Empty for ad-hoc reports.
From Date / To Date	Time period covered.
Created	When generation finished.
Sent To	Email addresses the report was sent to (scheduled reports only).
Status	Queued, In Progress, Finished, Failed, or Canceled.
Download (icon)	Download the generated report.
Cancel and remove (icon)	Cancel an in-progress report or delete a record.

The Download icon is only shown to users allowed to download the report (per the “Who can download” setting at generation time) and who have the administrative Viewing Monitoring Results permission.

Select multiple report rows with the checkboxes and use Bulk Action → Cancel and remove to clean up the grid. To cancel a Queued or In Progress report without removing the record, cancel it on the Tasks List tab of the System Health page instead — the row stays in the Generated Reports grid with status “Canceled.”

The grid refreshes every 60 seconds — press F5 for an immediate refresh.

In Multi-Tenant mode, users only see reports for their own tenant.

Customize report branding

Set a custom header, footer, and logo so every report carries your organization’s branding instead of the Syteca default. The setting applies to all reports for all users.

Open Configuration

Click the Configuration button at the top of the Management Tool, then select the Customization tab.

Set header and footer

In the Custom Reports Settings section, enter the required text in the Header Text and Footer Text fields.

Upload a custom logo

Still in Custom Reports Settings, select Use a custom logo instead of the Syteca logo, click Choose File, and pick your logo image. The custom logo appears on the first page of every report.
