This page configures SAML 2.0 authentication between Microsoft Azure (Entra ID) Enterprise Applications and the Syteca Management Tool. See SSO integration overview for what SSO integration does and the Management Tool settings shared across every provider.

​
Configure Microsoft Azure

1

Create an enterprise application

On the Azure Home page, click Enterprise applications, then New application, then Create your own application. Enter a name for the application and click Create.
2

Assign users or groups

Select Assign users and user groups, click Add user/group, and select the users or groups that should be able to log in to Syteca through Azure SSO.
After adding a user or group, confirm the assigned Role is correct, and edit it if needed.
3

Enable SAML single sign-on

Open the Single sign-on section and select SAML. On the Set up Single Sign-On with SAML page, click Edit.
4

Configure the SAML identifier and reply URL

Set the following fields:
  • Identifier (Entity ID): your Management Tool URL, for example https://<hostname or IP address>/Ekran System
  • Reply URL (Assertion Consumer Service URL): https://<hostname or IP address>/Ekran System/Account/ConsumeSSO
Click Save.
5

Download the federation metadata

Scroll to the SAML Signing Certificate section and download the Federation Metadata XML file (named SytecaSSO.xml).

​
Configure the Management Tool

1

Open SSO Integration settings

Click Configuration at the top of the Management Tool, then select the SSO Integration tab.
2

Enter the issuer and upload the metadata

In Issuer Name, enter the Management Tool URL. Upload the SytecaSSO.xml file using Choose File.
3

Review the auto-create account setting

The Auto-create a Management Tool account for a new user on the first SSO login checkbox is selected by default. See SSO integration overview for what this controls.
4

Save and download the Management Tool metadata

Click Save, then copy the Metadata URL into a new browser tab to download Metadata.xml.
5

Upload the Management Tool metadata to Azure

In Azure, go to Home → Enterprise applications → All Applications → Browse Azure AD Gallery → SytecaSSO, click Upload metadata file, and select Metadata.xml. Click Save.
6

Verify the integration

Log in to the Management Tool using Log in with SSO to confirm the integration works.

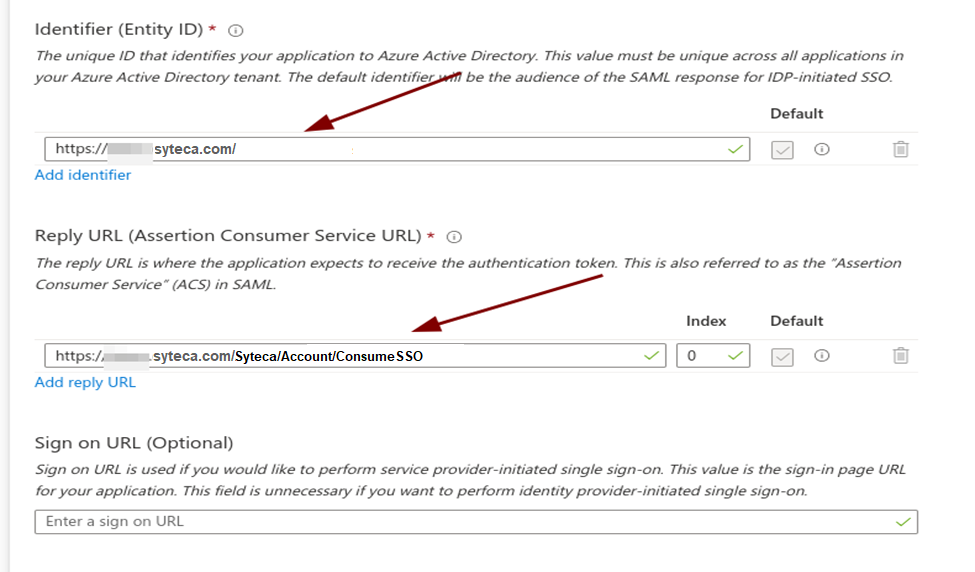

Azure SAML configuration page with Identifier and Reply URL fields

Configuring the SAML Identifier and Reply URL fields in Azure Enterprise Applications.

SSO authentication is not currently supported in Multi-Tenant mode.
